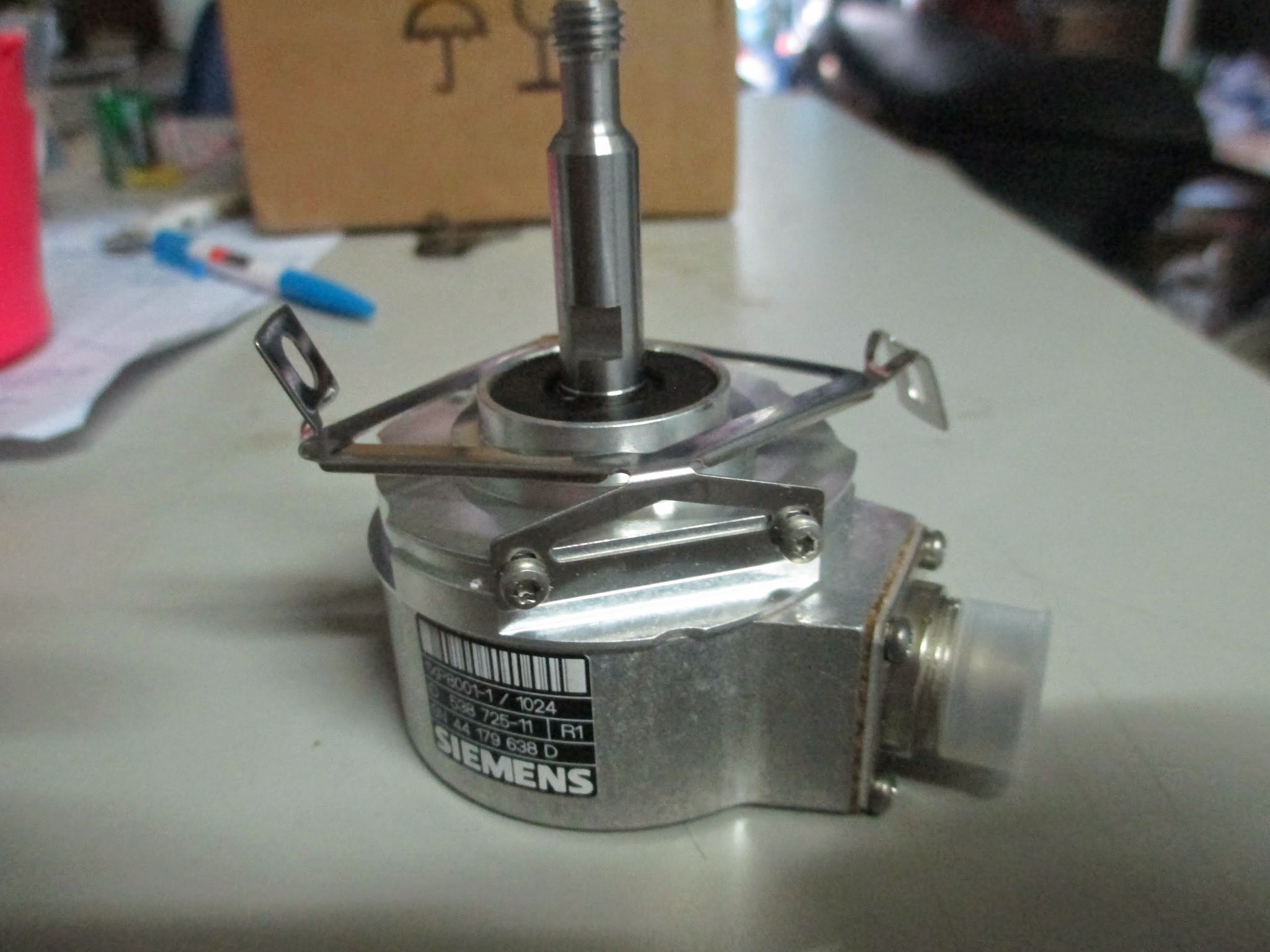

Siemens Encoder 1XP8001-1/1024

Mô tả

ENCODER SIEMENS 1XP8001-1/1024

Encoder 1XP8001 SIEMENS rotary encoder
lXP8001-1/1024 (HTL) 1XP8001-1/1024
Supply: +10V to +30V (HTL)
Current input without load: 200mA;
Maximum load current per output: 100mA;
Resolution, Pulses per revolution:1024;
Pulse offset between the two outputs: 90±20%
Output amplitude: U High>UB-3.5V, U Low<3V;
Minimum edge interval: 0.8uS at 160KHz;
Edge sttepness(without load or cable): t+, t-<200ns
Maximum frequency: 160kHz;
Maximum speed: 9000/MIN; 9000rpm
Temperature range -20C to 100C;
Degree of protection: IP66;
Maximum radial cantilever force: 60N;
Maximum axial force: 40N;
Termination system: 12-PIN; 12-way plug (socket supplied)
IXP8001-1/1024;
CSA; UL;
Weight: 0.5Kg with package

Siemens encoder :

1XP8001-1/1024
1XP8001-2/1024
1XP8001-1/2048
1XP8001-2/2048

siemens 1xp8001-1/1024
